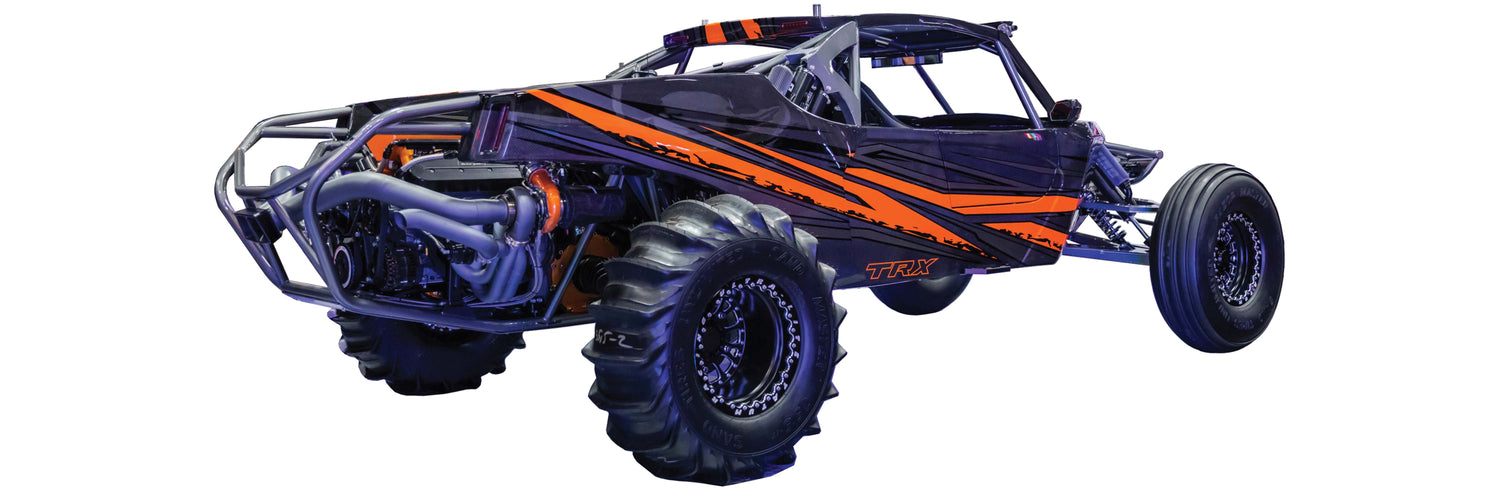

TRX-2 DOOR

The all new TRX-2 DOOR emerged from the TRX-2 with added accessibility, twin turbo 1550 horsepower, awesome upgrades, stunning interior and premium electronics. Still featuring an innovative wide body design, new chassis, body, trailing arms, inlaid radius windshield, radius roof and rear engine cage, this car is specifically designed for high horse power.

More Information

Standard Features

• RHS 454 TWIN TURBO 1550 HP – All Pro cylinder heads, Dailey dry sump system

• Tatum billet and sheet metal manifold

• Stainless 4 to 2 to 1 headers with Tatum billet dual exhaust tip

• Twin Core Intercooler with SPAL HP fans

• Albins 5-speed sequential transmission

• Transmission pump and filter

• MoTeC M-130 ECM with PDM and 15-button keypad

• MoTeC 1212 digital dash display with back up camera

• 2-seat 4130 chromoly TRX-2 DOOR chassis 1 ¾ TIG welded with chromoly door structures and billet aluminum hinges

• Premium CNC Stitched Alcantera interior and headliner

• Underglow lights

• Premium Rockford Fosgate stereo system

• Carbon fiber body, tilt hood for easy access, roof, dash, and console

• Custom powder coated chassis

• Powder coated trailing arms, tie rods, and radiator lines

• 4130 boxed plate bulk heads

• 4130 boxed plate shock mounts – front and rear

• 4130 boxed plate a-arms

• 2.0 billet Class 1 spindles. 12 deg. with 300M heat treated top pin and bushings, 4340 heat treated spindle snout, and 2 1/16 spherical bearing upper and lower with 304 stainless hi-mis alignment spacers

• 7075 billet spindle nuts

• 300M billet ram rack with tie rod spreader

• 4130 tie rods with FK Bearing chromoly heim joints and 304 stainless steel hi-mis alignment spacers

• 2” hollow 4 piston front disk brakes with 11” scalloped rotors

• 934 box plate trailing arms – 4130 TIG welded

• 934 Midboard hubs with 6 piston calipers and a 13” scalloped rotors

• 934 CVs with super cages – race prepped

• 934 300M axeles

• Sway bar system with 7075 billet sway bar arms and 4130 chromoly clevis

• (2) King 3.5 5 tube bypass race series shocks

• (2) 3.0 BYPASS SHOCKS

• (2) King 2.5 coil over remote shocks

• (2) 2.0 coilover remote res shocks

• (8) Eibach coil springs

• (2) Jettrim custom high containment seats with front pockets and adjustable seat sliders

• (2) Crow 5 point 3” seat belts with sewn in pads

• Custom graphics by CR Designs

• Custom radius windshield with DOT safety glass

• Full aluminum floor and aluminum sub floors with custom SeaDek floor mats

• Skid plate for engine and transmission

• 35 gallon fuel cell with a kevlar racing bladder

• Billet aircraft fuel filler

• CBR radiator with (2) 16” Spal fans with shroud with an aluminum over flow bottle

• Tatum 17” billet bead lock

• STU 35.5 17 and 12.50 Sand Master tires

• 42” LED light bar

• LED tail lights

• (2) Driving lights in the front bumper

• HOWE power steering servo and reservoir

• 4130 steering shaft with SWEET u-joints

• Tilton 4-disk clutch

• Meziere high torque starter

• Aeromotive Silver Series fuel pump, dual fuel filters and EFI regulator

• Lowrance 7” HD color GPS

• PCI race radio with TRAX intercom

• (2) headsets wired for iPod with noise cancelation

• (2) Push to talk intercom that goes from car to car

• MoTeC CAN-Bus harness

• MPI leather steering wheel with quick disconnect

• Tatum billet shifter and cable

• Wilwood pedals with swing mount and a dual master cylinder

• Aluminum gas pedal with a foot rest and Morse throttle cable

• Turning brakes

• Billet Albins transmission mounts

• Billet LS motor mounts with delron bushings

• (2) Billet steps

• Billet 3 panel rear view mirror

• Billet dual row LED dome light

• Billet lighted whip mount

• (4) Billet shock reservoir clamps

• Steel braided brake lines with billet clamps

• Steel braided fuel lines with all –AN fittings

• 3000 PSI Weatherhead power steering lines

• 12 point nickel aircraft

• Dual batteries (Oddessey)

Options

• Engine upgrades

• Whipple super charger

• Fire suppression system (fire
bottle)

• Chrome a-arms and trailing arms

• Seat heaters

• Custom upgrades available
