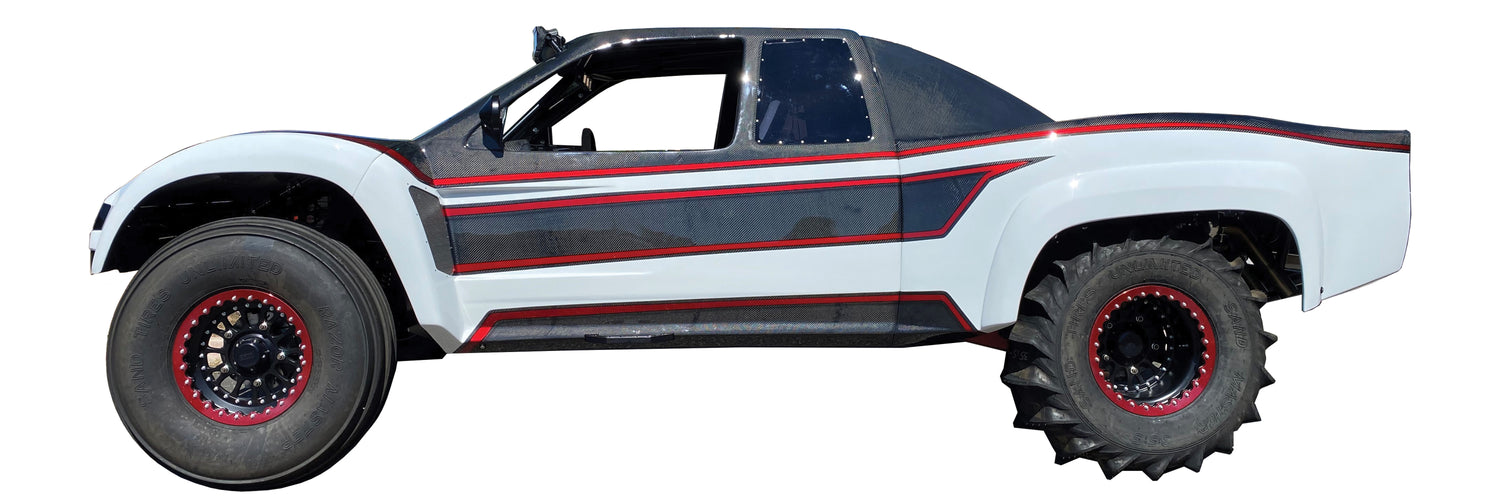

5 SEAT SAND TRUCK

The 5 seat Sand Truck has an innovative race inspired design that’s also sleek and stylish. This Sand Truck is built for the best handling along with top quality craftsmanship and performance.

More Information

Standard Features

• LS3/428 performance Venom motor with 650 HP, stainless steel headers, custom valve covers and billet pulley set

• Albins 5 speed sequential transmission

• MoTeC M-84 ECM and ignition wire harness

• 5 seat 4130 chromoly Sand Truck chassis TIG welded

• Custom powder coated chassis

• Custom powder coated trailing arms, tie rods, radiator lines and aluminum under body

• 4130 boxed plate bulk heads

• 4130 boxed plate shock mounts – front and rear

• 4130 box plate TIG welded a-arms

• 2.0 billet Class 1 spindles. 12 deg. with 300M heat treated top pin and bushings, 4340 heat treated spindle snout, and 2 1/16 spherical bearing upper and lower with 304 stainless hi-mis alignment spacers

• 7075 billet spindle nuts

• 300M billet ram rack with tie rod spreader

• 4130 tie rods with FK Bearing chromoly heim joints and 304 stainless steel hi-mis alignment spacers

• 2” hollow 4 piston front disk brakes with 11” scalloped rotors

• 934 box plate trailing arms – 4130 TIG welded

• 934 Midboard hubs with 6 piston calipers and 13” scalloped rotors

• 934 CVs with super cages – race prepped

• 934 300M axles

• Sway bar system with 7075 billet sway bar arms and 4130 chromoly clevis

• (2) King 3.5” tube bypass shocks

• (2) 3.0 bypass shock

• (2) King 2.5 coil over remote shocks

• (2) 2.0 coil over remote

• (8) Eibach coil springs

• Jettrim custom high containment seats with front pockets and adjustable seat sliders

• (5) Crow 5 point 3” seat belts with sewn in pads

• Custom embossed interior and headliner

• Composite body, hood, roof, dash, console, tailgate, and fenders

• Custom graphics by CR Designs

• Rear deck panels with powder coated screens

• Custom radius windshield with DOT safety glass

• Full aluminum floor and aluminum sub floors

• Skid plate for engine and transmission

• 25 gallon custom  fuel cell

• Billet fuel filler

• CBR radiator with (2) 16” Spal fans with shroud with an aluminum over flow bottle

• Tatum 17” billet bead lock contrast cut

• STU 35.5 17 and 12.50 Sand Master tires

• (3) Vision X LED light bar

• LED tail lights

• Howe power steering servo and reservoir

• 4130 steering shaft with SWEET u-joints

• Dual disk clutch

• IMI high torque starter

• Aeromotive A1000 fuel pump, dual fuel filters and EFI regulator

• PCI race radio with 4 link intercom and (4) headsets wired for iPod with noise cancelation

• (2) Push to talk intercom that goes from car to car

• Livorsi tach, water temp, oil pressure, and fuel level gauges

• Custom chassis harness with Deutsch connectors, Weatherpack connectors and 24 pin canon plug

• Leather wrapped steering wheel with quick disconnect

• Tatum billet shifter and cable

• Wilwood pedals with swing mount and a dual master cylinder

• Aluminum gas pedal with a foot rest and Morse throttle cable

• Turning brakes

• Billet Albins transmission mounts

• Billet LS motor mounts with delron bushings

• (2) Billet steps

• Billet 3 panel rear view mirror

• Billet dual row LED dome light

• Lighted whip mount

• (4) Billet shock reservoir clamps

• Steel braided brake lines with billet clamps

• Steel braided fuel lines with all –AN fittings

• 3000 PSI weather head power steering lines

• 12 point nickel aircraft shock hardware

Options

• Carbon fiber body

• Tatum 17” billet contrast cut wheels

• Engine upgrade – twin turbos

• Engine upgrade – Whipple super charger

• Intercooler

• Tatum billet sheet metal manifold

• Dailey dry sump sys

• MoTeC 12″ dash display

• MoTeC 7″ dash display

• MoTeC PDM

• MoTeC keypad

• Back up camera

• Tail gate with pad and Rockford Fosgate sound system with remote

• Transmission pump and filter

• Stainless 4 to 2 to 1 headers

• PCI trax stereo intercom with bluetooth

• Rockford Fosgate stereo system

• Underglow lights

• Fire suppression system (fire bottle)

• Chrome a-arms and trailing arms

• Seat heaters

• Custom upgrades available
