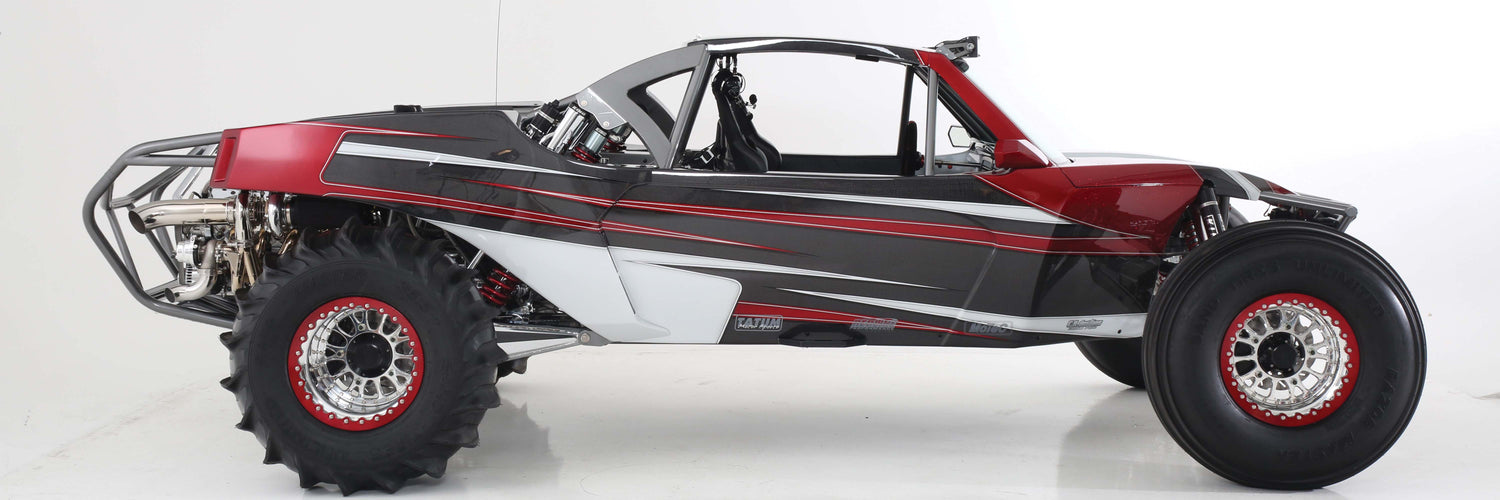

TRX-2

The all new TRX-2 is the ultimate sand car. With an innovative wide body design that features a new chassis, body, trailing arms, inlaid radius windshield, radius roof and rear engine cage, this car is specifically designed for high horse power.

More Information

Standard Features

• LS3/428 performance wet sump Venom motor with 650 HP and stainless steel headers, custom valve covers and billet pulley set
• Albins 5-speed sequential transmission
• MoTeC M-84 ECM and ignition wire harness
• 2 seat 4130 chromoly TRX-2 chassis 1 ¾ TIG welded
• Custom powder coated chassis
• Powder coated trailing arms, tie rods, and radiator lines
• 4130 boxed plate bulk heads
• 4130 boxed plate shock mounts – front and rear
• 4130 boxed plate a-arms
• 2.0 billet Class 1 spindles. 12 deg. with 300M heat treated top pin and bushings, 4340 heat treated spindle snout, and 2 1/16 spherical bearing upper and lower with 304 stainless hi-mis alignment spacers
• 7075 billet spindle nuts
• 300M billet ram rack with tie rod spreader
• 4130 tie rods with FK Bearing chromoly heim joints and 304 stainless steel hi-mis alignment spacers
• 2” hollow 4 piston front disk brakes with 11” scalloped rotors
• 934 box plate trailing arms – 4130 TIG welded
• 934 Midboard hubs with 6 piston calipers and a 13” scalloped rotors
• 934 CVs with super cages – race prepped
• 934 300M axeles
• Sway bar system with 7075 billet sway bar arms and 4130 chromoly clevis
• (2) King 3.5 tube bypass shocks
• (2) 3.0 bypass shocks
• (2) King 2.5 coil over remote shocks
• (2) 2.0 coilover remote res shocks
• (8) Eibach coil springs
• (2) Jettrim custom high containment seats with front pockets and adjustable seat sliders
• (2) Crow 5 point 3” seat belts with sewn in pads
• Custom embossed interior and headliner
• Composite body, hood, roof, dash, and console
• Custom graphics by CR Designs
• Custom radius windshield with DOT safety glass
• Full aluminum floor and aluminum sub floors
• Skid plate for engine and transmission
• 35 gallon fuel cell with a kevlar racing bladder
• CBR radiator with (2) 16” Spal fans with shroud with an aluminum over flow bottle
• Tatum 17” billet bead lock
• STU 35.5 17 and 12.50 Sand Master tires
• 42” Vision X LED light bar
• LED tail lights
• (2) Driving lights in the front bumper
• Howe power steering servo and reservoir
• 4130 steering shaft with SWEET u-joints
• Dual disk clutch
• IMI high torque starter
• Aeromotive A1000 fuel pump, dual fuel filters and EFI regulator
• PCI race radio with 4 link intercom and (2) headsets wired for iPod with noise cancelation
• (2) Push to talk intercom that goes from car to car
• Livorsi tach, water temp, oil pressure and fuel level gauges
• Custom chassis harness with Deutsch connectors, Weatherpack connectors and 24 pin canon plug
• Leather wrapped steering wheel with quick disconnect
• Tatum billet shifter and cable
• Wilwood pedals with swing mount and a dual master cylinder
• Aluminum gas pedal with a foot rest and Morse throttle cable
• Turning brakes
• Billet Albins transmission mounts
• Billet LS motor mounts with delron bushings
• (2) Billet steps
• Billet 3 panel rear view mirror
• Billet dual row LED dome light
• Billet lighted whip mount
• (4) Billet shock reservoir clamps
• Steel braided brake lines with billet clamps
• Steel braided fuel lines with all –AN fittings
• 3000 PSI Weatherhead power steering lines
• 12 point nickel aircraft shock hardware

Options

• Carbon fiber body
• Tatum 17” billet contrast cut wheels
• Engine upgrade – twin turbos
• Engine upgrade – Whipple super charger
• IntercoolerTatum billet sheet metal manifold
• Dailey dry sump system
• MoTeC 12″ dash display
• MoTeC 7″ dash display
• MoTeC PDM
• MoTeC keypad
• Back up camera
• Tatum billet shifter with electric reverse lockout
• Transmission pump and filter
• Stainless 4 to 2 to 1 headers
• PCI traxs stereo intercom with bluetooth
• Rockford Fosgate stereo system
• Underglow lights
• Tilt hood
• 30 gallon fuel cell
• Dual batteries (Oddessey)
• Fire suppression system (fire bottle)
• Chrome a-arms and trailing arms
• Seat heaters
• Custom upgrades available
