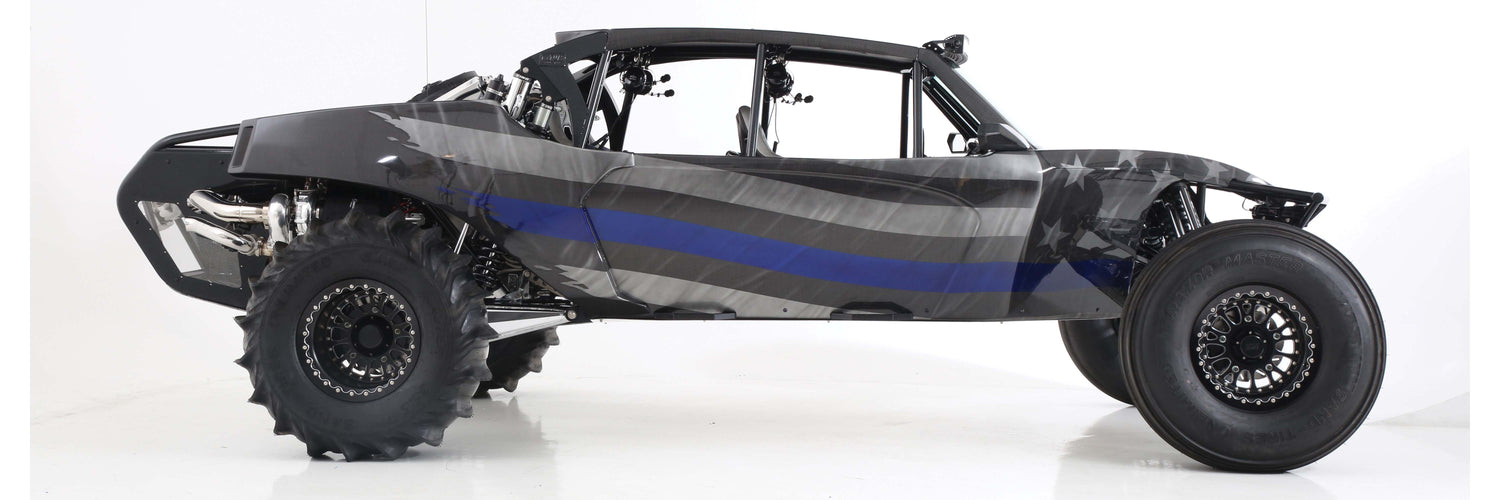

TRX-4

The all new TRX-4 has an innovative wide body design with refined styling featuring race car suspension for maximum wheel travel. The TRX-4 is built to handle massive horsepower and has excellent visibility along with precision craftsmanship.

More Information

Standard Features

• LS3/428 performance Venom motor with 650 HP, stainless steel headers, custom valve covers and billet pulley set

• Albins 5 speed sequential transmission

• MoTeC M-84 ECM and ignition wire harness

• 4 seat 4130 chromoly radius chassis 1 ¾ TIG welded

• Custom powder coated chassis

• Powder coated trailing arms, tie rods, and radiator lines

• 4130 boxed plate bulk heads

• 4130 boxed plate shock mounts – front and rear

• 4130 boxed plate a-arms

• 2.0 billet Class 1 spindles. 12 deg. with 300M heat treated top pin and bushings, 4340 heat treated spindle snout, and 2 1/16 spherical bearing upper and lower with 304 stainless hi-mis
alignment spacers

• 7075 billet spindle nuts

• 300M billet ram rack with tie rod spreader

• 4130 tie rods with FK Bearing chromoly heim joints and 304 stainless steel hi-mis alignment spacers

• 2” hollow 4 piston front disk brakes with 11” scalloped rotors

• 934 box plate trailing arms - 4130 TIG welded

• 934 Midboard hubs with piston calipers and 13” scalloped rotors

• 934 CVs with super cages – race prepped

• 934 300M axels

• Sway bar system with 7075 billet sway bar arms and 4130 chromoly clevis

• (2) King 3.5” tube bypass shocks

• (2) king 3.0 bypass shocks

• (2) King 2.5 coil over remote shocks

• (2) 2.0 remote res shocks

• (8) Eibach coil springs

• (4) Jettrim custom high containment seats with front pockets and adjustable seat sliders

• (4) Crow 5 point 3” seat belts with sewn in pads

• Custom embossed interior and headliner

• Composite body, hood, roof, dash, and console

• Custom graphics by CR Designs

• Custom radius windshield with DOT safety glass

• Full aluminum floor and aluminum sub floors

• Skid plate for engine and transmission

• 30 gallon fuel cell with a kevlar racing bladder

• CBR radiator with (2) 16” Spal fans with shroud and an aluminum over flow bottle

• Tatum 17” billet bead lock contrast cut

• STU 35.5 17 and 12.50 Sand Master tires

• 40” LED light bar

• LED tail lights

• (2) Driving lights in the front bumper

• Howe power steering servo and reservoir

• 4130 steering shaft with SWEET u-joints

• Dual disk clutch

• IMI high torque starter

• Aeromotive A1000 fuel pump, dual fuel filters and EFI regulator

• PCI race radio with 4 link intercom and (4) headsets wired for iPod with noise cancelation

• (2) Push to talk intercom that goes from car to car

• Livorsi tach, water temp, oil pressure and fuel level gauges

• Custom chassis harness with Deutsch connectors, Weatherpack connectors

• Leather wrapped steering wheel with quick disconnect

• Tatum billet shifter and cable

• Wilwood pedals with swing mount and a dual master cylinder

• Aluminum gas pedal with a foot rest and Morse throttle cable

• Turning brakes

• Billet Albins transmission mounts

• Billet LS motor mounts with delron bushings

• (4) Billet steps

• Billet 3 panel rear view mirror

• Billet dual row LED dome light

• Billet lighted whip mount

• (4) Billet shock reservoir clamps

• Steel braided brake lines with billet clamps

• Steel braided fuel lines with all –AN fittings

• 3000 PSI weather head power steering lines

• 12 point nickel aircraft shock hardware

Options

• Carbon fiber body

• Tatum 17” billet contrast cut wheels

• Engine upgrade – twin turbos

• Engine upgrade – Whipple super charger

• Intercooler

• Tatum billet sheet metal manifold

• Dailey dry sump system

• MoTeC 12″ dash display

• MoTeC 7″ dash display

• MoTeC PDM

• MoTeC keypad

• Back up camera

• Tatum billet shifter with electric reverse lockout

• Transmission pump and filter

• Stainless 4 to 2 to 1 headers

• PCI traxs stereo intercom with bluetooth

• Rockford Fosgate stereo system

• Tilt hood

• 4″ 3D billet a-arms

• 30 gallon fuel cell

• Dual batteries (Oddessey)

• Underglow lights

• Fire suppression system (fire
bottle)

• Chrome A-arms and trailing arms

• Seat heaters

• Custom upgrades available
