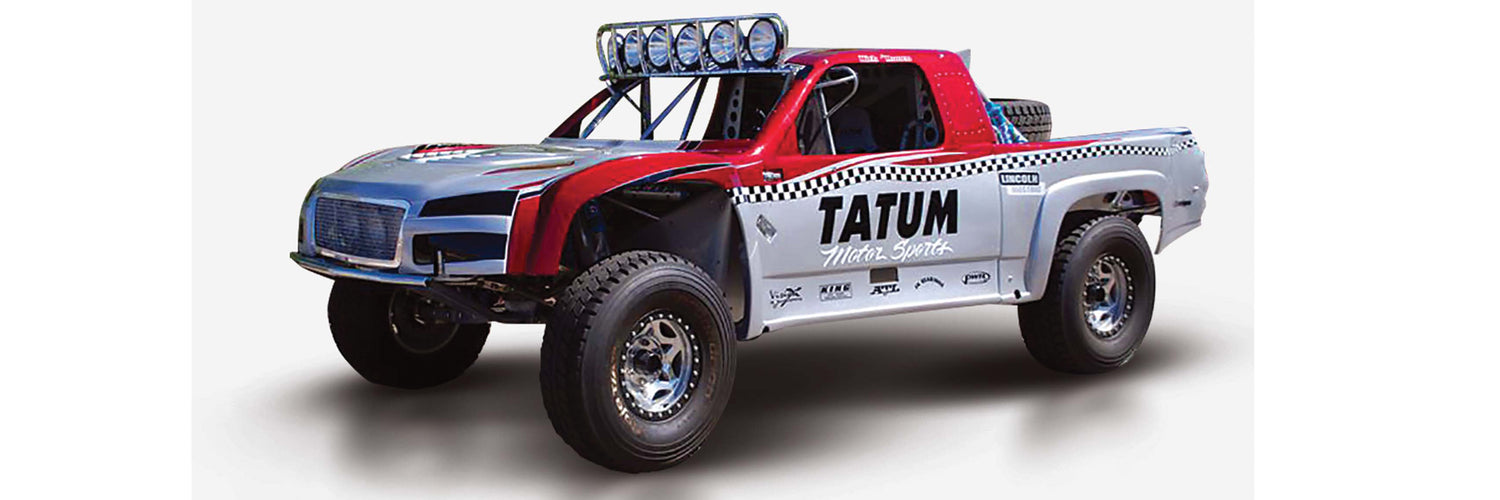

TROPHY TRUCK

More Information

Standard Features

• SCORE, BITD and Aussie legal

• 481 CID Venom racing engine

• Custom stainless steel stepped headers with merged collectors

• Rancho drive train engineering

• Automatic with reduction box

• TCS billet converter

• 4130 chassis 2” TIG welded

• Custom fabricated front bumper

• Custom fabricated rear bumper

• Billet motor plate

• Billet trans adapter cross member

• 4130 box plate TIG welded and heat treated a-arm lower
with T24 spherical bearings

• 4130 box plate TIG welded upper a-arm

• 5” front hub with 6 piston caliper and 14×1” vented rotors

• 5” fabricated spindle with steel billet clevis

• Chromoly spindle nuts

• Howe 3.0 Trophy Truck rack

• Billet steel tie rod adapter

• Howe Truggy servo

• Howe power steering reservoir with filter – Trophy Truck

• Billet front motor plate with power steering and alternator mount

• Howe 1600 PSI truck pump

• MOMO steering wheel with sweet disconnect

• 300M machined tie rods with pinch bolt

• Rod ends, spherical bearings, and hi-mis alignment spacers

• Rear 4130 plated trailing arms – TIG welded and heat treated

• 4130 rear links – TIG welded

• Fabricated 4” rear end housing with 300 M 2 5/8 axles

• Aluminum differential skid plate

• Custom drive shaft

• Drive shaft hoop

• Differential 10” ring gear and billet spool

• Rear 7075 billet hubs with 4340 heat treated drive plate

• 6 piston rear calipers with 14×1” vented rotors

• (2) King 4.5 x 16” 6 tube bypass with diffusers and finned reservoirs

• (2) King 3.0 x 14” coil over remote

• (2) King 4.5 x 14” 6 tube bypass with diffusers and finned reservoir remote

• (2) King 3.0 x 14” coil over remote

• (8) Eibach springs

• 220 PSI aircraft hardware for all suspension, shocks and steering

• (2) High containment seats

• (2) Crow 5 point bolt –in belts with sewn in pads

• Custom molded composite body – Chevy

• Laser cut body hangers

• Custom dash

• Custom aluminum under body

• Floor – 6061-T6

• Skid plate – 6061-T6

• Ron Davis radiator – dual core

• Heat exchanger

• Oil cooler with fan

• Trans cooler with fan

• Power steering cooler

• (2) Spal HP fans

• Custom screen radiator

• 80 gal. fuel cell with 4” fuel fill

• Dry brake fuel fill

• In cell fuel pump

• Aeromotive -12 100 micron fuel filter

• Aeromotive -12 10 micron fuel filter

• Aermotive EFI pressure regulator with gauge

• Rear sway bar system with billet sway bar arms

• BFG 40” Project KR

• 20 x 8 forged bead lock wheels

• CNC dual master large reservoir remote fill swing mount long pedals

• Fabricated gas pedal

• Dead pedal

• Mastercraft window nets

• Mastercraft double-quad limiter straps front and rear

• LED light bar in the front bumper

• LED light bar or HID roof lights

• LED tail lights with amber

• Kenwood race radio with intercom

• (2) Parker pumpers

• (2) Push to talk

• Lowrance 13” HD GPS

• Lowrance HD-5 GPS for driver

• Digital dash with full display

• Custom mil spec wiring with circuit breakers

• Aluminum floor jack with quick release handle

• Breaker bar lug wrench

• Halon fire bottle

• (2) Hand held fire extinguishers

• Passenger foot rest with oil holder

• (2) Side mirrors

• Tool bag

• First Aid Kit

• Triangle marker

• Dual tire mount with ratchet strap

• Artcar shifter and cable

• Adjustable seat sliders

• Spare drive shaft mount

Options

Any options are available. Give us a call.
