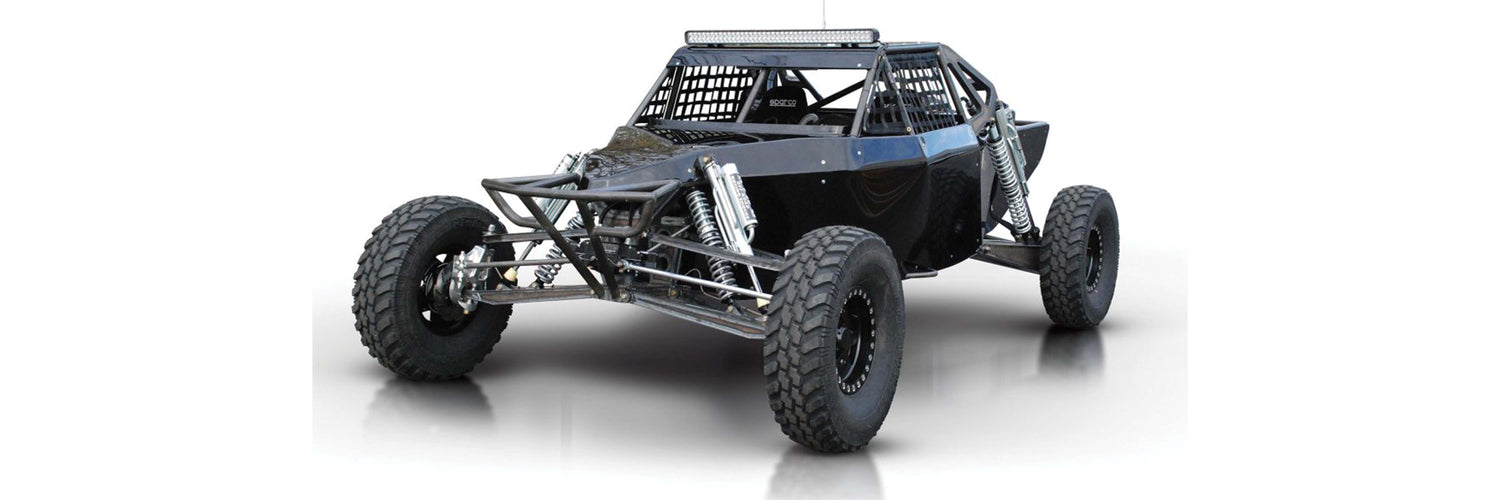

CLASS 10 - 2 SEAT

More Information

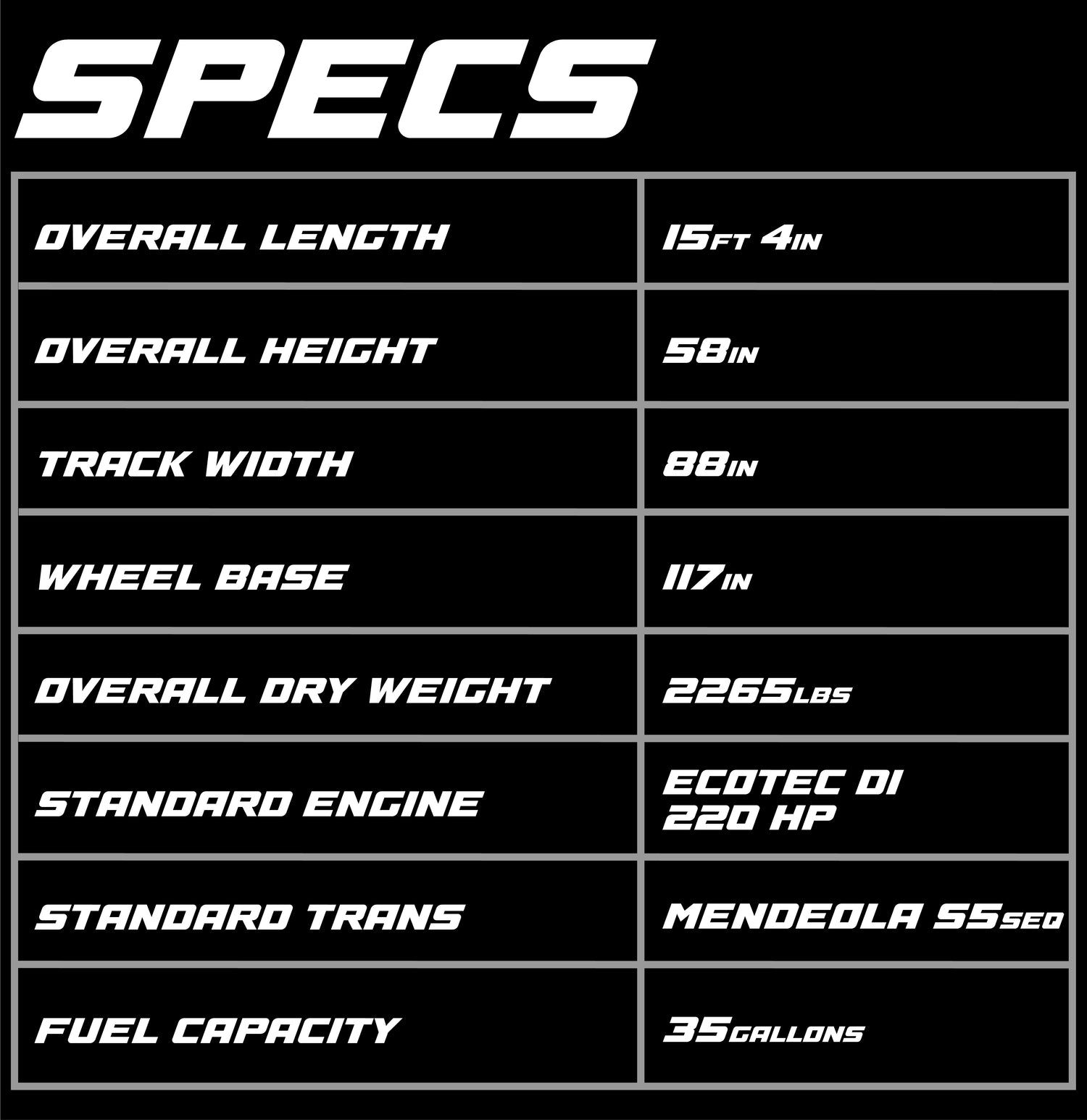

Standard Features

• 2,265 lbs

• 5 speed, 4 cylinder, 220 HP

• SCORE, BITD and Aussie legal.

• Adam Wik Ecotec with aluminum sheet metal oil pan and stainless steel header

• Mendeola 5 speed seq. or Fortin 5 speed seq. with transmission pump and shift indicator

• 2 seat 4130 TIG welded SCORE legal chassis

• Boxed bulk heads and plate shock mounts front and rear

• 4130 box plate TIG welded a arms

• Billet class 1 spindle

• 300M pin and bushings with 2″ head treated spindle snout

• 2″ hollow front brakes with 4 piston calipers and 11″ rotors

• 934 box plate trailing arms TIG welded

• 300M ram rack with 7075 billet tie rod spreader

• 4130 chromoly tie rods

• FK rod ends and spherical bearings with stainless steel hi-mis alignment spacers

• 934 mid boards with 6 piston calipers and 13″ rotors

• 934 300M axles

• 934 CVs and super cages – race prepped

• 934 boots and flanges

• (2) King 2.5 4 tube x 12 front bypass shocks

• (2) King 2 x 10 coil over remote

• (2) King 3″ 5 tube rear bypass

• (2) King 2 x 12 coil over remote

• (8) Eibach coil springs

• (2) High containment racing seat

• (2) Crow 5 point bolt in belt with sewn in pads

• Custom aluminum body

• Custom aluminum dash

• Full floor

• Sub floor

• Skid plate under engine and transmission

• Radiator screen

• Side screens on engine compartment

• 35 gal Harmon fuel cell with a 4″ fuel fill

• PWR radiator w/ built in oil cooler and (2) Spal HP fans

• UMP air cleaner

• Rear sway bar system

• BFG 33 x 10.50-15 BAJA TA with BTR or Method race wheels

• Howe power steering reservoir w/ filter

• Howe power steering pump

• Sweet servo

• Big control valve

• MOMO wheel with sweet wheel disconnect

• CNC dual master large reservoir with easy fill swing mount pedals

• CNC clutch pedal

• Fabricated gas pedal

• CNC turning brake

• Mastercraft window nets

• Mastercraft rear limiter straps

• (2) Vision X front 220-OP headlights

• Vision X LED light bar

• PCI race radio and intercom

• PCI push to talk

• Parker Pumper

• Lowrance HD 10″ GPS

• Custom wiring with circuit breakers

• Rad-flow jack

• Spare tire and wheel

• Breaker bar lug wrench

• Steel braided break lines

• Steel pluming in engine compartment

• LED tail lights in roof with amber light

• First Aid kit

• Triangle marker

• (2) Fire extinguishers

• Foot rest dead pedal

• Passenger foot rest with oil holder

• Livorsi gauges

• Tool bag

• Side mirrors

• Remote oil filter

Options

• Fortin 5 speed sequential

• Fortin 6 speed sequential

• MoTeC M-84 ECM

• MoTeC M-130 ECM

• MoTeC 12″ dash display

• MoTeC 7″ dash display

• MoTeC PDM

• MoTeC keypad

• Life ECM

• Life dash display

• Custom options available
